Connettori e pin PC
_________________________________________________

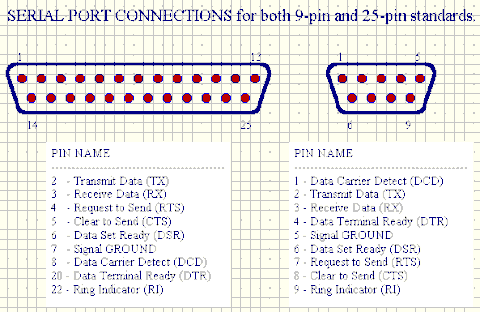

PORTE SERIALI 25 PIN e 9 PIN
____________________________________________________

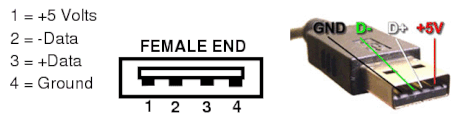

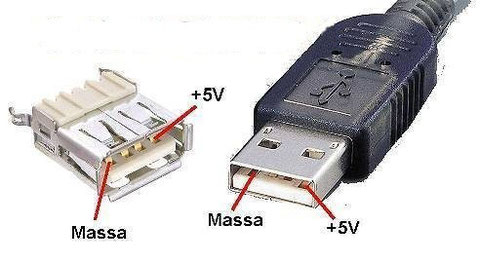

USB
______________________________________________________
ALIMENTATORI PC
__________________________________________________

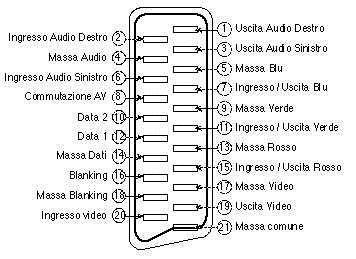

SCART TV
___________________________________________________
CONNETTORI VGA
___________________________________________________

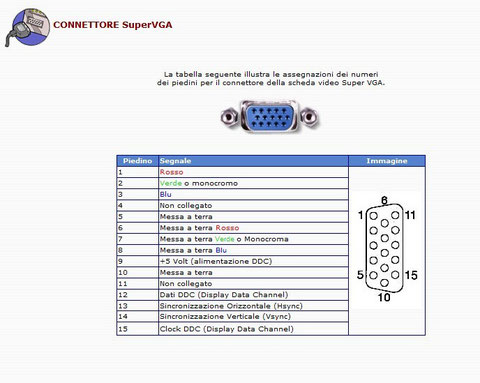

CONNETTORE SVGA
____________________________________________________
MINI DIN
__________________________________________________

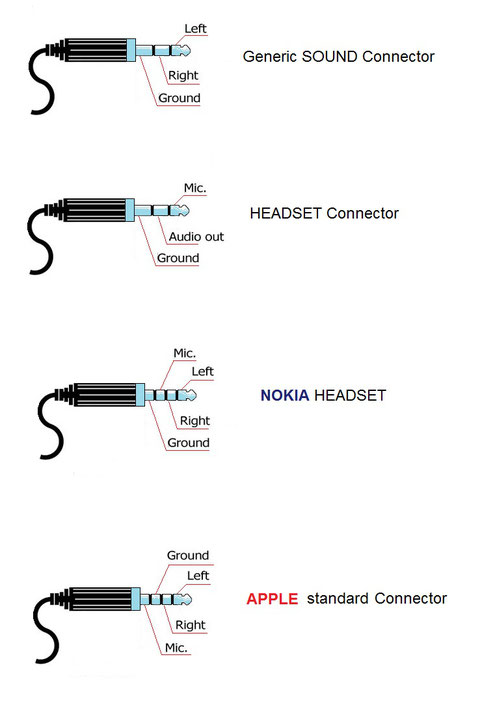

CAVI AUDIO VIDEO
_________________________________________________

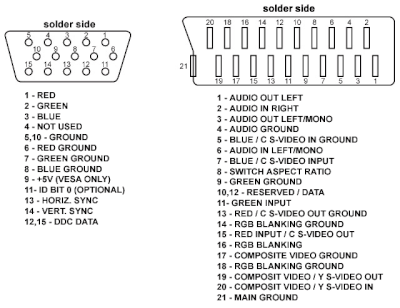

VGA SCART TV
____________________________________________________

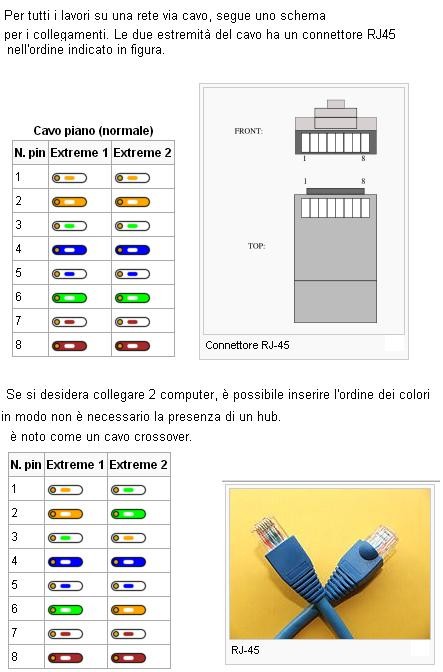

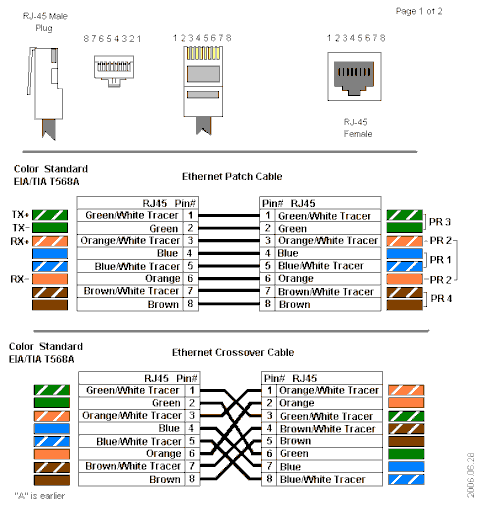

ETHERNET CAT 4-5 RJ-45 T568A Attenzione TIPO A !!
___________________________________________________
___________________________________________________
PANORAMICA CONNETTORI RF PIU' USATI
| Maschio | Femmina | |
| BNC |
|
|
| TNC |
|
|
| TNC - Reverse Polarity |
|
|
| Mini UHF |
|
|
| SMA |
|
|
| SMA Reverse Polarity |
|
|
| SMB |
|
|
| SMC |
|
|
| MCX |
|
|
| MMCX |
|
|
| MMCX Reverse Polarity |
|
|
| MMBX |
|
|
| MC - Scheda (Lucent) |
|
|
| N |
|
|
| N Reverse Poolariry |
|
|
__________________________________________________
